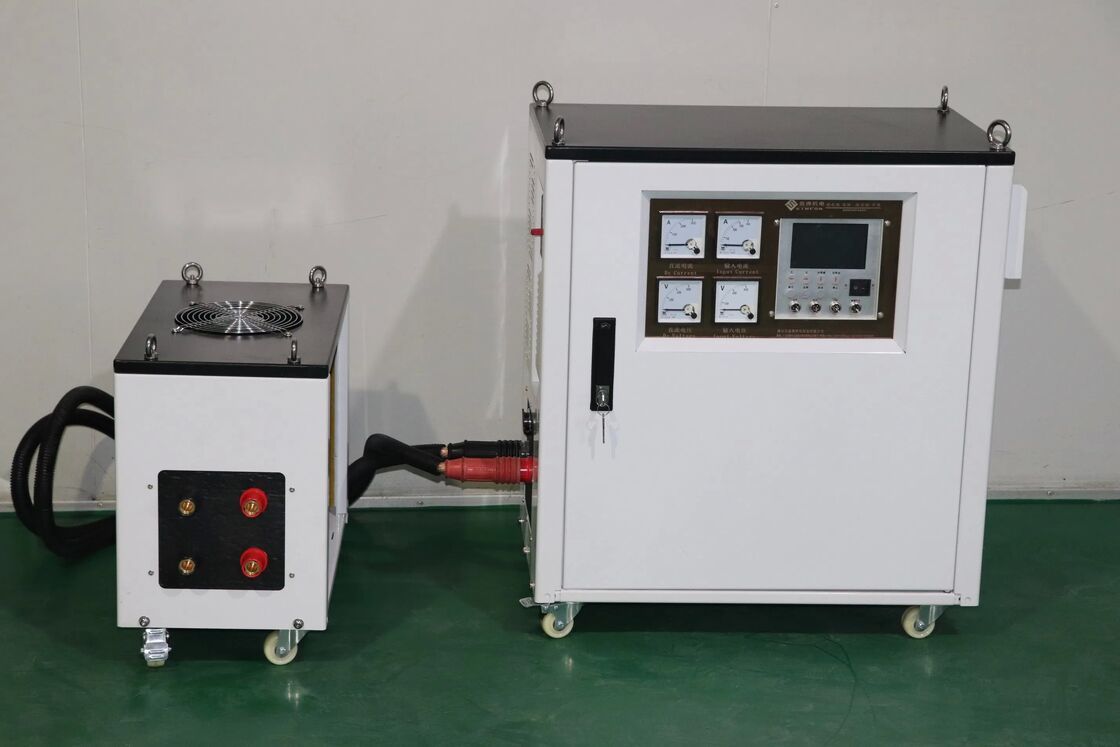

DSP-100kw Full Digital Air Cooled Induction Heating Equipment

Digital Type  Air Cooled Induction Heating Machine (DSP-100KW)













Advantage:
1 More than 20  years experience, stable and goods performance
2 CE certificated
3  Digital Type
4 8 Section heating


Main Characteristic:
1 Front Panel use the LCD Touch Screen, Key and Power Switch, all digital
display, can use Switch Signal( Electrical frequency signal) to control the
machine start and stop, and control the power via PLC.(RS232 or RS485 is
options).
Visual Human-computer Interface makes the operator feel more intimate and
intuitive. Because of its abundant industrial interfaces, it has stronger and
more flexible matching ability with robots, various automation equipment and
remoe control (unmanned) devices.
2 Induction Heating Machine have remote control function and adopt digital
circuit control, power regulation can be adjusted from 0% to 100% resolution,
and digital PID temperature control module can be configured to set the target
temperature of workpiece (infrared temperature measurement or
thermocouple temperature measurement) automatically. The accuracy of
temperature control is + 1'C for power regulation in heating process.
3 There are 5 working model, manual, timer, temperature, Constant
temperarure, section heating model.
1) Manual, On and stop in the Switch
2 ) Timer, setting heating time, after reach the heating time, then stop.
Fixed Temperature: Set the heating temperature that we need it, when the
reach to the temperature that we need it, then stop the machine.
3) Constant Temperature: Adjust the heating power automatic to keep the
same temperature to the workpiece.
4) Section Heating model, there are 8(S1-S8) options, each section can set
the heating power, timer, temperature or constant temperarture, temperature
or constant temperature just can choose any one. Power as 0 means no need
to heat, put the paramater that you need to set, if not choose that function
then show"--
5) There are 9 (P1-P9)programs, which can memorize 9 different workpiece in
the machine, and select programs by clicking P(P1-P9). Can save much time
if you have many workpiece in one machine, you can choose the programs
(P1-P9) to fast working





Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
